Authorize.Net

Authorize.Net is a US-based payment gateway service provider allowing merchants to accept credit card and electronic check payments through their website and over an Internet Protocol (IP) connection. Its service permits customers to enter credit card and shipping information directly onto a web page, in contrast to some alternatives that require the customer to sign up for a payment service before performing a transaction.



The Authorize.Net connector by IConduct is designated for manipulations over the Authorize.Net data for its further use and transfer through the IConduct platform.



To configure the Authorize.Net connector, follow the instructions below:

  1. In the Admin Navigation tree, select Connections and click New.

Connections Section in the Admin Navigation Tree

  1. Scroll down to the Billing section and select the Authorize.Net item from the list.

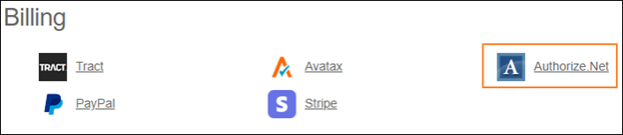

Connector Selection Page

  1. In the Authorize.Net work area, fill in the following fields and click Save.

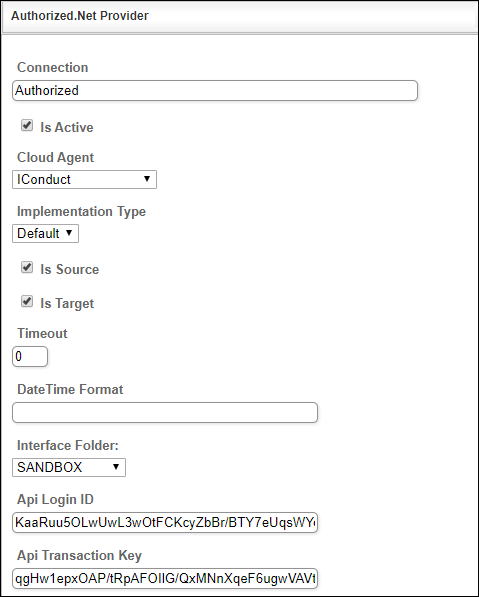

Connection Work Area

Field Description

Connection*

 A new connection name. Enter a connection alias here.

Is Active

Toggles connector’s activity at interface execution. Enable the checkbox to activate the connection for execution.

Cloud Agent*

The LAN you are working with. Select "IConduct" for cloud systems and your corporate agent for internal systems.

Implementation Type*

Defines the connection implementation type. Supported values:
  • Default. IConduct scheduler works on the cloud agent set in the Cloud Agent field.
  • Java. IConduct scheduler works by sending requests to a Java agent.

Is Source

 This connection entity is available as a data source for Import (writing to Schema). Enable the checkbox to ensure data import.

Is Target

 This connection entity is available as a data target that receives data from schema to current data container. Enable the checkbox to ensure data export.

Timeout

 The length of time (in milliseconds) the IConduct platform waits for a response from the connection provider before returning a timeout error. Set the time value to stop the system from connection attempts.

DateTime Format

 Not used in this connector.

Interface Folder*

 Environment the data will be transferred to.

API Login ID*

 Unique information specifically associated with the payment gateway account and used to authenticate transactions. Is taken from the user’s Authorize.Net account.
API Transaction Key*



*- mandatory fields.



Once the connection is saved, you can test if it is successful. Click Test Connection in the toolbar. If the created connection works, you will receive a success message. 

Testing the Connection
