FedEx IL

FedEx IL is an Israeli shipping company that offers an extensive range of international shipping services and export assistance. FedEx system helps to complete shipping documents and send international shipments by accessing forms, preparing and maintaining shipping labels and documents using stored databases of addresses and commodities, tracking the status of shipments and generating customizable reports.



The FedEx IL connector by IConduct is designed for data import and export from/to an Israeli FedEx system.

To configure the connector, follow the instructions below:



  1. In the Admin Navigation tree, select Connections and click New.

Connections Section in the Admin Navigation Tree

  1. On the Connector Selection Page, select the FedEx IL item from the Shipping section.

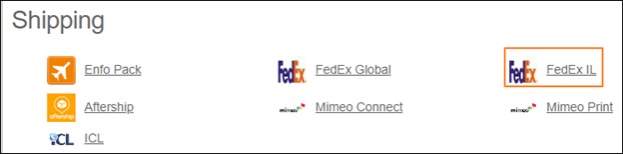

Connector Selection Page

  1. In the Data Provider work area, fill in the following fields and click Save.

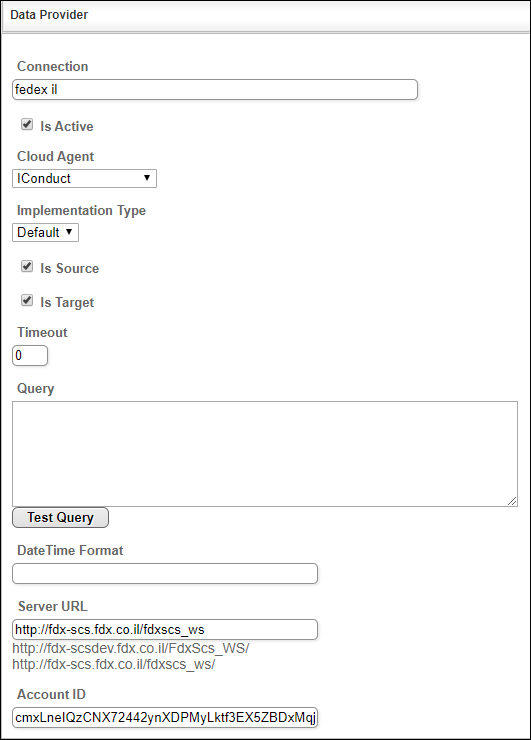

Connection Work Area

Field Description

Connection*

A new connection name. Enter a connection alias here.

Is Active

Toggles connector’s activity at interface execution. Enable the checkbox to activate the connection for execution.

Cloud Agent*

The LAN you are working with. Select "IConduct" for cloud systems and your corporate agent for internal systems.

Implementation Type*

Defines the connection implementation type. Supported values:

  • Default. IConduct scheduler works on the cloud agent set in the Cloud Agent field.
  • Java. IConduct scheduler works by sending requests to a Java agent.

Is Source

This connection entity is available as a data source for Import (writing to Schema). Enable the checkbox to ensure data import.

Is Target

This connection entity is available as a data target that receives data from schema to current data container. Enable the checkbox to ensure data export.

Timeout

The length of time (in milliseconds) the IConduct platform waits for a response from the connection provider before returning a timeout error. Set the time value to stop the system from connection attempts.

Query

The box is intended for entering a query. You can test the defined query by clicking Test Query once the connection is saved.

It’s recommended to test the query after the connection testing.

DateTime Format

Not used in this connector.

Server URL*

The service end-point where the request is sent. Insert the target system link here.

For example:

http://fdx-scsdev.fdx.co.il/FdxScs_WS/

http://fdx-scs.fdx.co.il/fdxscs_ws/

Account ID*

A unique account identifier in the FedEx system. The number should be taken from the FedEx account.

* - mandatory fields.



Once the connection is saved, you can test if it is successful by clicking Test Connection on the toolbar. If the created connection works, you will receive a success message. 

Testing the Connection
