NetSuite API

NetSuite is a suite of cloud-based financials / Enterprise Resource Planning (ERP), HR and omnichannel commerce software that runs the business of companies in more than 100 countries. This powerful platform provides for running and managing all kinds of CRM/ERP services. It enables companies to manage core business operations in a single system.

The NetSuite API connector by IConduct allows setting up an uninterrupted data flow between the NetSuite platform and other business applications through data import, export and carrying out of a variety of functions.



To configure the NetSuite API connector, follow the instructions below:

  1. In the Admin Navigation tree, select Connections and click New.

Connections Section in the Admin Navigation Tree

  1. On the Connector Selection Page select the NetSuite API item from the ERP/Accounting section.

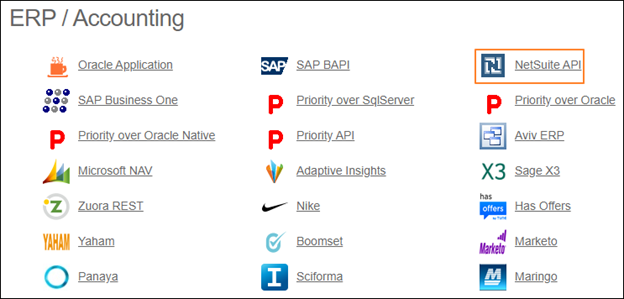

Connector Selection Page

  1. In the NetSuite API Provider work area, fill in the following fields and click Save.

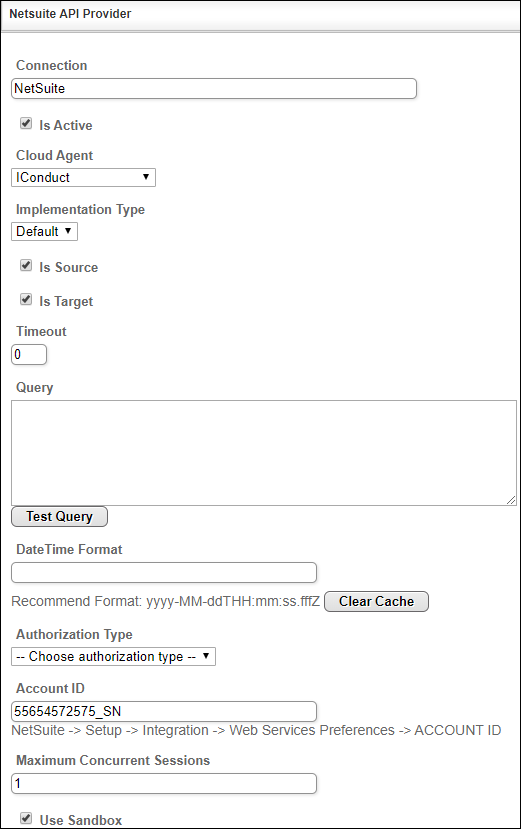

Connection Work Area

Field Description

Connection*

The new connection name. Enter a connection alias here.

Is Active

Toggles connector’s activity at interface execution. Enable the checkbox to activate the connection for execution.

Cloud Agent*

The LAN you are working with. Select "IConduct" for cloud systems and your corporate agent for internal systems.

Implementation Type*

Defines the connection implementation type. Select from the drop-down list:

  • Default. IConduct scheduler works on the cloud agent set in the Cloud Agent field.
  • Java. IConduct scheduler works by sending requests to a Java agent.

Is Source

This connection entity is available as a data source for Import (writing to Schema). Enable the checkbox to ensure data import.

Is Target

This connection entity is available as a data target that receives data from schema to current data container. Enable the checkbox to ensure data export.

Timeout

The length of time (in milliseconds) the IConduct platform waits for a response from the connection provider before returning a timeout error. Set the time value to stop the system from connection attempts.

Query

The box is intended for entering a query. You can test the defined query by clicking Test Query once the connection is saved.

DateTime Format

Allows defining the date and time formats appropriate for the connection. For detailed date and time formatting operations please refer to this page. Recommended format: yyyy-MM-dd HH:mm:ss

Clear Cache

To increase performance, IConduct creates a cache of the NetSuite entities metadata and presents a list of already queried NetSuite entities to the user. Should the entities be renewed on the NetSuite platform, click the button to update the list.

Authorization type*

The method to access NetSuite. Choose the authorization type from the drop-down list:

Login Based is used to access the NetSuite platform via user account with credentials. This connection type requires the following fields:

  • Username: the username of the NetSuite account owner.
  • Password: to the user account.
  • Role ID: the role assigned to the NetSuite user account. This is the internal Id of the role used to log in to NetSuite.
  • Application ID: a unique identifier required for external applications to log in to NetSuite. You can find it in NetSuite under NetSuite -> Setup -> Integration -> Manage Integrations -> Integration -> APPLICATION ID

Token Based is used to access the NetSuite platform via an API token. This connection type requires the following fields:

  • Consumer Key: the API key for authorization. The key is taken from the NetSuite account at NetSuite -> Setup -> Integration -> Manage Integrations -> New -> Consumer Key.
  • Consumer Secret: the API key for authorization. The key is taken from the NetSuite account at NetSuite -> Setup -> Integration -> Manage Integrations -> New -> Consumer Secret.
  • Token: the token authentication credential from NetSuite. The credential is taken from the NetSuite account at NetSuite -> Setup -> Users/Roles -> Access Tokens -> New -> Token Id.
  • Token Secret: the token authentication credential from NetSuite. The credential is taken from the NetSuite account at NetSuite -> Setup -> Users/Roles -> Access Tokens -> New -> Token Secret.

For details on authorization to NetSuite see Authentication Guide.

Account ID*

The unique identifier for the NetSuite account. The ID number can be found at NetSuite -> Setup -> Integration -> Web Services Preferences -> ACCOUNT ID.

Maximum Concurrent Sessions*

Maximum number of operations that can send concurrent requests to the NetSuite system simultaneously. Enter a value in the range 1-200.

Use Sandbox NetSuite Sandbox acts as a copy of the current company database on a separate server. When enabled, the integration is organized in your NetSuite Sandbox. This option provides another layer of integration security.



* - mandatory fields



Once the connection is saved, you can test if it is successful. Click Test Connection in the toolbar. If the created connection works, you will receive a success message. 

Testing the Connection
