Agile PLM WS

The information on this page relates to the new upgraded interface of the IConduct platform. To view information about the Classic version of the user interface, follow this link.



Oracle Agile PLM is a product lifecycle management solution. It helps to manage the product through the manufacturing, servicing, and disposal processes. Agile PLM Web services (WS) are a set of services for the following PLM functionalities: Business Object CRUD (Create, Read, Update, Delete) data services, collaboration services, meta-data services, search services, attachment services, table services.

The Agile PLM WS connector by IConduct integrates with the Agile PLM search services to import data from the platform for further transfer or manipulations.



To configure the Agile PLM WS connector, follow the instructions below:

  1. In the Main Menu, select Connections and press Create connection.

Accessing connections

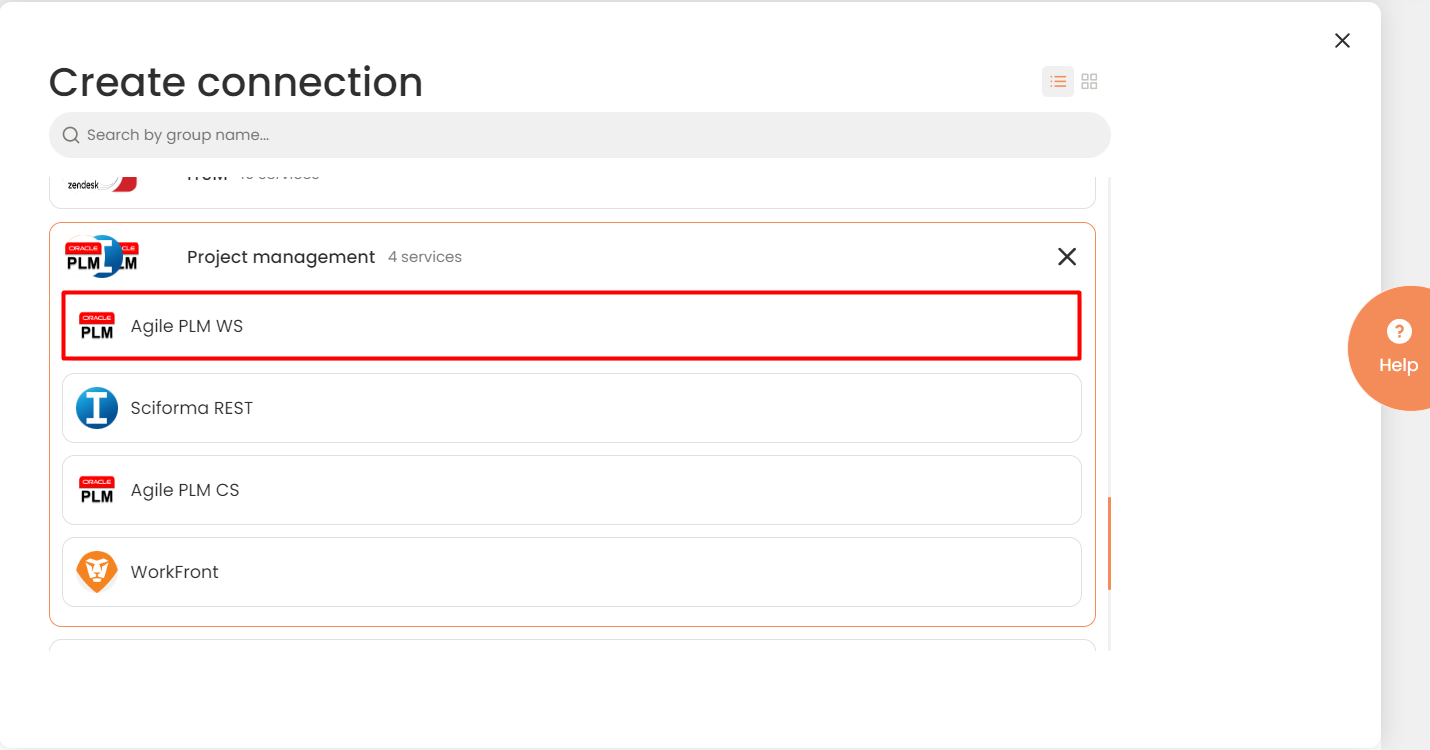

  1. On the Connector Selection Page select the Agile PLM WS item from the Project Management section.

Connector Selection Page

  1. In the Agile PLM WS Provider work area, fill in the following fields and press Create.

Connection Work Area

Field Description
Connection*

The new connection name. Enter a connection alias here.
Is Active

Toggles connector’s activity at interface execution. Enable the checkbox to activate the connection for execution.
Cloud Agent*

The LAN you are working with. Select "IConduct" for cloud systems and your corporate agent for internal systems.
Implementation Type*

Defines the implementation type. Select from the drop-down list:

  • Default. IConduct scheduler works on the cloud agent set in the Cloud Agent field.
  • Java. IConduct scheduler works by sending requests to a Java agent.
Is Source

This connection entity is available as a data source for Import (writing to Schema). Enable the checkbox to ensure data import.
Is Target

Not used in this connector.
Timeout

The length of time (in milliseconds) the IConduct platform waits for a response from the connection provider before returning a timeout error. Set the time value to stop the system from connection attempts.

Query
The box is intended for entering a query. You can test the defined query by clicking Test Query once the connection is saved. It’s recommended to test the query after the connection testing.
DateTime Format

Not used in this connector.
Server URL*

The service end-point where the request is sent. Insert the target system link here.

Example: http://myagileserver:7777/
Username* Username to the Oracle Agile PLM account.
Password* Password to the Oracle Agile PLM account.



* -mandatory fields.



Once the connection is saved, you can test if it is successful. Press the Test Connection button. If the created connection works, you will receive a success message. 

Testing the Connection
