Create GUID

The information on this page relates to the new upgraded interface of the IConduct platform. To view information about the Classic version of the user interface, follow this link.



The Create GUID algorithm allows you to generate GUIDs (Globally Unique Identifiers) to identify resources and place them under the target column. Each row under the target column will contain a unique GUID.



Here is an example of GUID data generation:



Target Column
84264974-b93f-487a-8969-f742772f45d6
1fb19061-4a65-4a82-838a-f6e452ef9212
01a74999-62dc-48c9-b7b5-1036f8d7124b
13da05c2-79f6-4758-94b6-5175e16a6214
d4770dba-7991-4793-81ac-b3700146e0d7



To configure the Create GUID manipulate step, follow the instructions below:



  1. In the specific Interface work area, press the downward button next to the task and press the ‘+’ (plus sign) button.

Creating a New Step

  1. Select Create manipulation step.
  1. Navigate to the Keys section and select Create GUID.

Keys Section

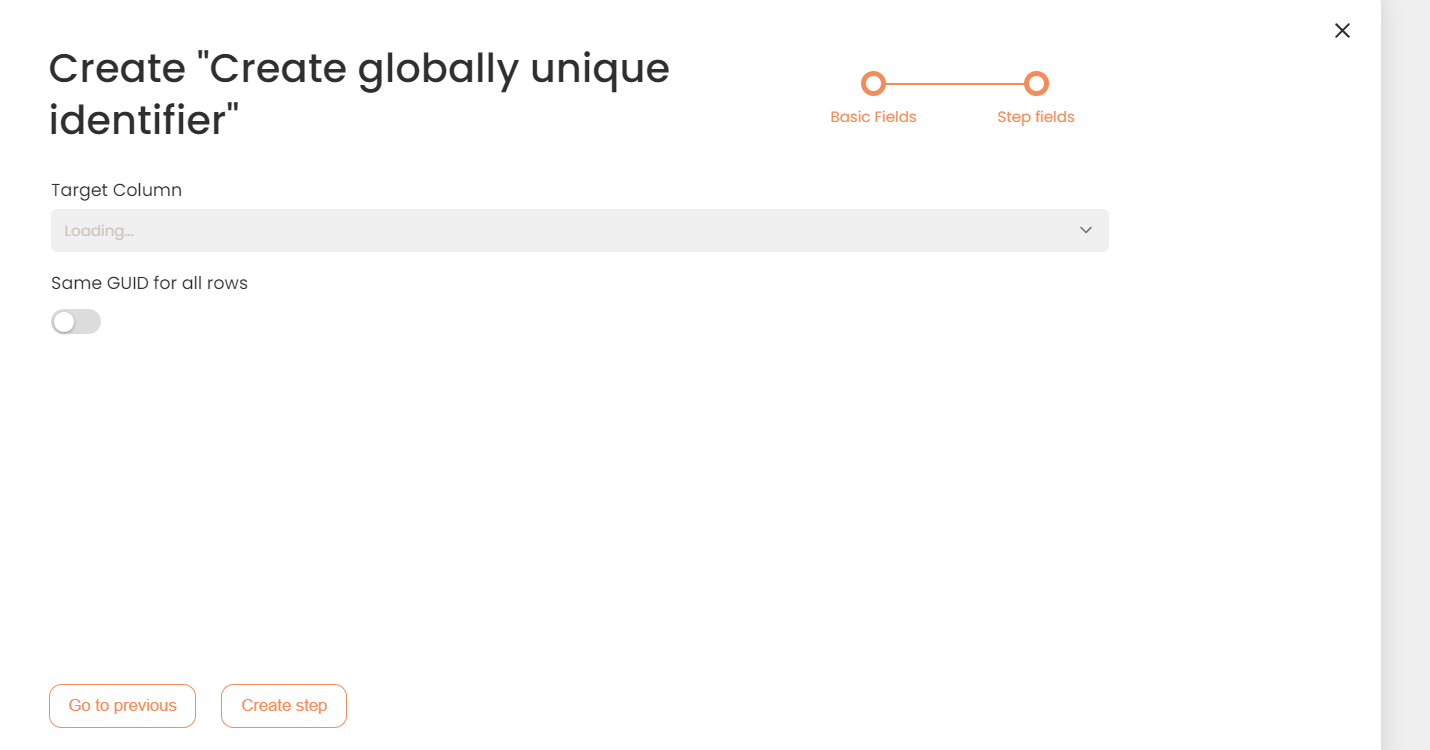

  1. In the Create GUID work area, fill in the following fields:

Step Fields Configuration

The following table describes the fields available for this step:

Fields

Description

Name of step

Provide a distinctive name for this step.

Filter Expression

Optional. Use this filed to filter data from the source database prior to inserting it into the Schema table.

Sort Expression

Optional. Use this field to sort data from the source database prior to inserting it into the Schema table.

Order of Execution

Enter the order in which this step should be executed.

Audit notes

Leave notes about the step if needed. This field may contain any information, such as the purpose of the step, further actions that must be taken etc. for you to work with the step in the future or to inform team members about your intent.

Is Active

Activate the switch to engage the scheduler for this step.

Stop interface execution if query failed

Optional. If enabled, the system will stop any data manipulation if the query returns an error.

Save Schema (enabled per interface)

If selected, the schema is created for this step.

Target Column

Specify the destination column where the result of the operation will be stored.

Save GUID for all rows

If selected, each row under the target column will hold the same GUID.



  1. Press the Create step button.
